The clay, making up roughly 20% of the amount of firewood, serves because the foundational component in turning a easy log right into a sturdy wall of a firewood home.
To make sure heat and stop cracking, the clay ought to be blended with finely chopped straw, amounting to 10-15% of the clay’s quantity, and totally blended collectively.
The development of the wood-fired home’s basis is comparatively easy, involving a fundamental strip boot basis, with layers of stone poured and bonded with liquid mortar, successfully filling all of the voids.
The optimum depth of the inspiration is proscribed to 1 meter, because the picket wall weighs considerably lower than brick and stays resilient to floor settlement. A size of 40-50 centimeters is good, making certain the home stays heat even throughout frigid winters.

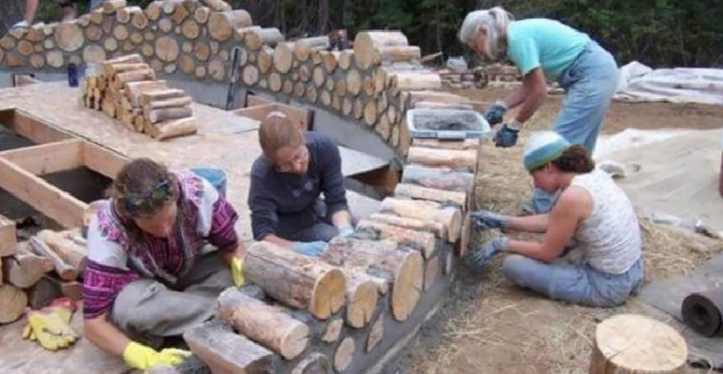

The expertise for masonry in a wooden wall is easy however calls for consideration to element, rigorously inserting wooden on the mortar with minimal joint thickness. To boost heat, a little-known approach is to put the clay-salt mortar in two parallel beds, creating an air layer throughout the clay that stops seams from freezing and forming chilly bridges. Moreover, when setting up corners, using the strategy of dressing wooden rows much like typical bricklaying enhances the general construction’s power.
The home measures 9×9 meters with one and a half flooring, laid out utilizing 40 cm lengthy logs on clay. The partitions had been constructed in a log-like method, with rows overlapping on the corners. A strapping, created from an inch board at 50-70 cm intervals, served for leveling.
Every wall is inbuilt three rows of firewood at a time, avoiding extra to permit the clay to dry correctly and stop the higher rows from squeezing the logs under.
It’s value noting that there was no point out of utilizing bracing shields (formwork, much like tisse expertise) when laying out the partitions. The writer carried out movable shields made from three boards in the complete size of the wall, each inside and out of doors, mounted to the completed wall with self-tapping screws on the backside, and a spacer positioned on the high to take care of the right thickness of the wall and stop logs from exceeding needed lengths. These shields had been instrumental in sustaining the verticality of the partitions.
For home windows and doorways, containers with a width matching the wall (200×100 board) had been crafted and put in in place on the masonry. Moreover, a fifth wall (body of timber 150×150) was launched in the midst of the home, with the ends of the bar embedded within the partitions.
The second-floor overlap (beams) was designed such that one finish of the beams rested on the body of the fifth wall, whereas the opposite was supported by the wall. To stage the beams on the wall, a board was positioned (the complete size of the wall). The second flooring development needed to be halted because of the onset of frost, resulting in water freezing and impeding additional wall laying.
